A 1000W power supply isn't just a number; it's the heart of a truly high-performance PC. For serious gaming rigs, demanding creative workstations, and aggressively overclocked systems, it’s an absolute must. If you're running a beast of a graphics card like an NVIDIA RTX 4080 or 4090, a kilowatt PSU provides the stable, reliable power you need to avoid system crashes and unlock peak performance.
While it’s definitely overkill for a mid-range build, for the most demanding machines built here in Southern Ontario, it's the foundation for both stability today and upgrades tomorrow.
Deciding If a 1000W PSU Is Right for Your Build
Stepping up to a 1000W power supply isn't a decision you should make on a whim. Honestly, for a lot of PC builders right here in Hamilton, a quality 750W or 850W unit hits the sweet spot. But for that top tier of high-performance machines, a full kilowatt of power shifts from being a luxury to an essential component. This is especially true if your shopping list includes flagship parts that really push the power envelope.
Your decision really boils down to three things: your graphics card, your plans for overclocking, and whether you're considering a multi-GPU setup. A brand-new NVIDIA RTX 4090, for example, is notorious for huge, momentary power spikes. Without a robust PSU to handle them, you risk system instability during the most intense gaming sessions or rendering jobs.
Likewise, if you're learning how to build a gaming PC with the goal of pushing it to its absolute limits, starting with a higher-wattage PSU is non-negotiable for any serious builder in Canada.
Key Scenarios Demanding a Kilowatt
The need for a 1000W PSU usually becomes crystal clear once you map out your components and long-term goals. Think of it like a simple decision tree—certain paths will always lead you toward a bigger power supply.

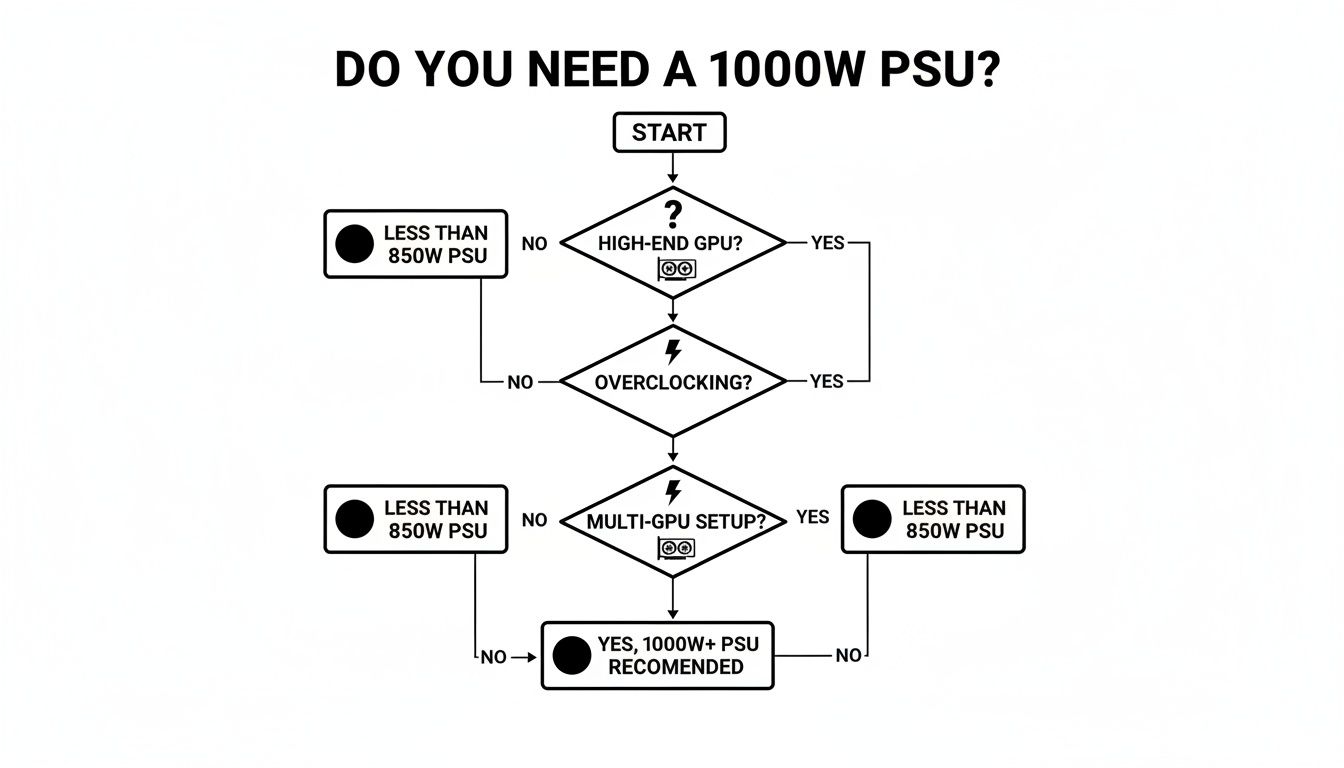

This handy flowchart visualizes the most common reasons builders end up needing a kilowatt unit.
As you can see, the main drivers are almost always an elite-tier GPU, an appetite for serious overclocking, or running multiple graphics cards at once.
We're seeing this trend across North America as the demand for more powerful components grows. In fact, the 500W–1000W PSU market is set to see the fastest growth through 2032, with a projected compound annual growth rate of 7.66%, largely thanks to high-end gaming and AI. With top-tier GPUs alone regularly drawing 300–450W, savvy builders are choosing higher-wattage units to give themselves plenty of headroom. You can dig into more PSU market growth data on SNS Insider.
To make it even simpler, this table breaks down the common scenarios where a 1000W PSU is a smart choice.
Quick Guide When a 1000W PSU Makes Sense
| Scenario | Is a 1000W PSU Recommended? | Key Consideration |
|---|---|---|
| High-End Gaming Rig | Yes, strongly. | Top-tier GPUs like the RTX 4090 can have transient power spikes over 600W. |
| Enthusiast Overclocking | Yes. | Pushing both the CPU and GPU to their limits significantly increases power draw. |
| Creative Workstations | Yes. | Intensive rendering and video editing tasks put a sustained, heavy load on all components. |
| Multi-GPU Setups (SLI/CrossFire) | Yes, mandatory. | Running two powerful graphics cards will easily exceed the capacity of smaller PSUs. |
| Future-Proofing a High-End Build | Yes, a smart move. | Gives you the freedom to upgrade your GPU in a few years without needing a new PSU. |
| Mid-Range Gaming Build | No, it's overkill. | A quality 750W or 850W PSU is more than sufficient and more cost-effective. |
| Basic Office or Home PC | No, absolutely not. | A 550W or 650W unit is plenty for everyday computing tasks. |
Ultimately, investing in a 1000W PSU is about ensuring your high-performance components get the clean, stable power they need to perform at their best, both now and for years to come.
Expert Tip: The most important concept here is power headroom. You never want your PSU running at 100% capacity. The sweet spot for efficiency, cooler temperatures, and long-term reliability is having your system pull 50-70% of the PSU's maximum rating under full load. A 1000W unit guarantees you have that safe buffer, even with a beastly rig.
Figuring Out Your PC's Real Power Draw
Before you even think about buying a power supply, you need to get a solid estimate of your PC's power needs. This is genuinely the most critical step. If you just guess, you might end up with an underpowered unit that causes random crashes, or you could overspend on a massive PSU you'll never fully use. The sweet spot is a power supply that can handle your system's peak demand with ease.
Luckily, you don't have to break out a calculator and an engineering textbook. There are some fantastic online Power Supply Unit (PSU) calculators that do the heavy lifting for you. I often point people in Hamilton toward the ones from reputable brands like Cooler Master, Seasonic, and be quiet!. These tools are great because they let you plug in every single component you plan to use, from the big-ticket items like your CPU and GPU right down to every last case fan.
Adding Up the Watts
When you're using one of these calculators, details matter. A top-of-the-line CPU can easily pull over 100W more than a mid-range one, and a flagship graphics card is a beast, often demanding 350W or more all by itself. Don't forget the small stuff—every part adds to the total load.
To give you a rough idea of where all that power goes, here’s a quick breakdown of what you can expect from individual parts under heavy load:
- High-End Graphics Cards (think RTX 4080/4090): These are the kings of power consumption, frequently drawing 350W to 450W, and sometimes even more during intense gaming sessions.
- High-Performance CPUs (like an Intel Core i9 or AMD Ryzen 9): These can pull anywhere from 125W to 250W, especially if you're pushing them with an overclock.
- Motherboard: Generally sips between 30W and 80W, depending on its chipset and features.
- RAM: Each stick is pretty light on power, using only about 3W.
- Storage Drives: SSDs are incredibly efficient at around 3W, while older mechanical hard drives need closer to 9W each.
- Cooling System: All those fans and pumps add up. An AIO liquid cooler and a full set of case fans can easily add another 10W to 30W to the total.
Putting together a list of the best gaming PC components you want for your build ahead of time makes this whole calculation a breeze.
The Golden Rule: Always Plan for Headroom
After the calculator gives you a number for your peak wattage, whatever you do, do not buy a PSU rated for that exact number. This is a mistake we see all the time in our Hamilton shop when people bring in their DIY builds for repair. Pushing a power supply to its absolute limit is just asking for trouble—it leads to overheating, system instability, and a much shorter lifespan for the unit.
Here's the most important takeaway: Add a 20-30% buffer on top of your system's calculated peak load. If a calculator tells you your dream build will pull 750W, a 1000W power supply is the perfect choice, giving you a healthy 25% cushion.
This extra room, or "headroom," ensures your PSU operates in its most efficient power band, which is usually around 50-70% of its maximum capacity. Running in this zone means the PSU stays cooler, the fan runs quieter, and it provides cleaner, more stable power to all your expensive hardware.
Plus, it's an investment in the future. That headroom gives you the freedom to upgrade your graphics card down the line, add more storage, or even dabble in overclocking without having to buy a whole new power supply. Think of it as insurance for your PC's long-term health and your own peace of mind.
How To Choose The Right 1000W Power Supply
So, you've done the math and landed on needing a 1000W power supply. Great! But a quick search will throw dozens of models at you, all claiming to be the best. The reality is that not all 1000W units are created equal.
Knowing how to read the spec sheet is what separates a smart buy from a future headache. Here at Klimka Computer Solutions, we've seen a huge spike in demand for higher-wattage power supplies right here in the Hamilton area. Gamers and professionals are ditching their old 400–600W units for something that can safely handle modern hardware, usually an 80 PLUS Gold or Platinum 1000W model.
Decoding Efficiency Ratings
You've probably seen the 80 PLUS logo followed by words like Bronze, Gold, or Titanium. This isn't just marketing fluff—it’s a certified measure of how well the power supply converts AC power from your wall into the DC power your components need. The higher the efficiency, the less energy gets wasted as heat.
A more efficient PSU runs cooler and quieter because its fan doesn't have to work as hard. It will also trim a bit off your electricity bill over time. For a high-performance system pulling serious wattage, 80 PLUS Gold hits that sweet spot between cost and performance for PC enthusiasts in Ontario.
An 80 PLUS Gold rated PSU is at least 90% efficient when your system is at a 50% load. This means only 10% of the energy is lost as heat. A Bronze unit, in contrast, is only 85% efficient, wasting almost twice as much energy.
To make this clearer, let's break down what those ratings really mean for your build.
80 PLUS Efficiency Rating Comparison
| 80 PLUS Rating | Efficiency at 20% Load | Efficiency at 50% Load | Efficiency at 100% Load | Best For |
|---|---|---|---|---|
| Bronze | 82% | 85% | 82% | Budget-conscious builds with moderate power needs. |
| Gold | 87% | 90% | 87% | The standard for most high-end gaming and workstations. |
| Platinum | 90% | 92% | 89% | Enthusiast rigs where maximum efficiency is a priority. |
| Titanium | 92% | 94% | 90% | Extreme builds and servers running 24/7. |
As you can see, jumping from Bronze to Gold makes a noticeable difference in wasted energy, which directly translates into less heat inside your PC case.
Modularity Matters For Cable Management
Power supply cables come in three distinct flavours, and your choice here has a huge impact on the building experience and the final look of your PC.
- Non-Modular: All the cables are permanently attached. This is the cheapest option, but it often leads to a "rat's nest" of unused cables stuffed into any available space, which can look messy and even hurt airflow.
- Semi-Modular: The essential cables—like the 24-pin motherboard and 8-pin CPU connectors—are hardwired. Peripheral cables for things like your GPU, fans, and storage drives are detachable. This is a good middle ground.
- Fully Modular: Every single cable can be detached from the PSU body. This gives you total control, allowing you to use only the cables you need for an exceptionally clean build with the best possible airflow.
When customers in Burlington and Hamilton use our custom gaming PC builder, a fully modular 1000W PSU is almost always our top recommendation. The clean result and thermal benefits are absolutely worth the small extra cost.
Single-Rail vs Multi-Rail Designs
This part can get a bit technical, but the basic idea is pretty straightforward. A single-rail PSU delivers all its power through one beefy +12V rail. In contrast, a multi-rail unit splits its output across several lower-amperage rails, each with its own safety limit.
For a modern gaming PC with one monster graphics card, a single-rail design is usually the way to go. It gives that power-hungry GPU the freedom to draw as much current as it needs from the main rail without tripping any individual over-current protection (OCP) limits. If you'd like to get more into the weeds on this, it's worth reading up on understanding different types of Power Supply Units.
Your Guide to Safe PSU Installation and Testing
You've got the new 1000W power supply box on your desk—now for the hands-on part. Swapping a PSU is usually a smooth process, but this isn't a step you want to rush. Taking a careful, methodical approach is the best way to protect both yourself and the expensive hardware inside your rig. A little patience here prevents a lot of headaches later.
Before you even grab a screwdriver, do a quick sanity check. Make sure the physical dimensions of the new PSU actually fit inside your case. This is a common hiccup, especially with the more compact or custom-built cases we see a lot of here in Hamilton. While you're at it, lay out the modular cables you'll need and put the rest back in the box to reduce clutter.
Pre-Installation Safety Checks
First things first: safety. Unplug your computer completely from the wall outlet. Then, press the power button on the case a few times to drain any lingering electricity from the components. This is a simple but critical step.
You'll also want to ground yourself to prevent static discharge from zapping your sensitive electronics. The easiest way is to just touch a large, unpainted metal object. For the truly cautious, an anti-static wrist strap connected to a metal part of your PC case is the professional standard for technicians in Canada.
Mounting and Connecting Core Components
After you've removed the old power supply, your new one should slide neatly into its place. Use the four screws that came with it to secure it firmly to the back of the chassis. You want it snug, not overtightened, with no wobble.
Now, let's get things connected. Start with the big one: the 24-pin motherboard connector. It's the main lifeline for your entire system. Next up is the 8-pin (often a 4+4 pin) CPU power cable. This usually plugs in near the top of the motherboard, close to the processor itself. Getting these two right is non-negotiable.
Pro Tip: If your build is centered around a modern, high-end graphics card, you're likely dealing with the newer 12VHPWR (12-pin) connector. Pay extra attention to this one. Make sure it's pushed in all the way until it clicks. A loose 12VHPWR connection is a notorious source of problems and can be a serious safety hazard.
For those interested in the deeper technical aspects of component integrity, learning how to test a circuit board for maximum reliability offers some fascinating insights.
Final Connections and the First Boot
With the essentials handled, it's time to connect the PCIe power cables to your graphics card and the SATA power cables to your SSDs or hard drives. Once everything has a home, take a few minutes for cable management. Even just a few zip ties or Velcro straps to tidy up loose wires behind the motherboard tray can make a huge difference. This isn't just about aesthetics; it dramatically improves airflow and helps keep your components running cool.
Before you put the side panel back on, it's smart to do a quick power-on test. Plug the PC back in, flip the PSU's main switch, and hit the power button. If the fans start spinning and you see the boot screen, you're golden.
If you get nothing, don't panic. Immediately switch everything off, unplug the power cord, and meticulously double-check every single connection you made. This careful process is key, but if you hit a wall and can't figure it out, our guide on how to fix the computer has plenty of troubleshooting steps you can follow.
When to Call a Professional for Your PSU Upgrade
Upgrading to a new 1000W power supply can be a rewarding weekend project, but let's be honest—sometimes it’s smarter to call for backup. Not every build is a simple plug-and-play affair, and what starts as a quick swap can easily spiral into a frustrating mess.
Knowing when to tag in an expert can save you a world of headache and protect your expensive components from accidental damage. It’s all about getting the job done right the first time so you can get back to what you love doing.
Clear Signs You Need an Expert
There are a few tell-tale signs that you've hit a wall. If you've spent the better part of an afternoon untangling a rat's nest of cables or your PC stubbornly refuses to power on post-upgrade, it's time to step away. These are classic symptoms of a hidden compatibility issue or a missed connection that a seasoned technician can pinpoint almost instantly.
Another common roadblock is proprietary hardware. If you're working with a pre-built machine from a major brand like Dell, HP, or Alienware, you might be in for a surprise. They often use non-standard cases, motherboard connectors, and unique PSU shapes that make dropping in a standard 1000W power supply a real challenge.
I've seen it countless times: trying to force a standard ATX PSU into a proprietary case. It's a recipe for disaster that can lead to short circuits, terrible airflow, or even physically damaging your components. An expert will spot these mismatches immediately and know exactly what to do.
For local businesses here in Hamilton—from creative studios to auto repair shops—a stable workstation is non-negotiable. Moving to a high-quality 1000W power supply is a smart investment to prevent random shutdowns when running demanding software and multiple peripherals. The demand for robust power supplies in professional settings is a well-documented trend, as you can see in recent market trends and analysis.
At Klimka Computer Solutions, our on-site service in Hamilton, Ancaster, and Stoney Creek takes the guesswork out of the equation. We manage all the technical details so you can simply enjoy the performance boost. When you’re not 100% confident, our team is here to provide the professional computer repair services in Canada you need for total peace of mind.
Common Questions About 1000W Power Supplies
Even after crunching the numbers and narrowing down your options, a few last-minute questions always seem to pop up. Here in our Hamilton shop, we get asked the same things over and over by builders who are this close to pulling the trigger on a new 1000W power supply.
These are the practical, real-world concerns that matter. Let's tackle them head-on so you can feel confident you're making the right call for your rig.
Is It Bad To Have Too Much Wattage?
Not at all. In fact, it's actually a smart move. Having a power supply with more capacity than your PC strictly needs doesn't hurt a thing. Your components only draw the power they require at any given moment.
Putting a 1000W PSU in a system that tops out at 600W simply means your power supply will be loafing along, well within its most efficient performance range. Think of it like a car with a powerful engine—you're not redlining it just to drive to the shops, but the power is there when you need it. This headroom reduces strain, keeps the PSU running cooler and quieter, and can seriously extend its lifespan.
Key Takeaway: You can't fry your parts by giving them access to too much wattage. The real risk is an underpowered PSU, which leads to crashes, random shutdowns, and even hardware damage.
Will a 1000W Power Supply Hike Up My Electric Bill?
This is a common misconception. A higher-wattage PSU doesn't automatically mean a higher hydro bill. Your power supply only pulls what your system is actually using from the wall, plus a bit more that gets lost as heat.
For example, if your PC is just idling on the desktop and pulling 100W, a high-efficiency PSU will only draw about 110W from the outlet. The "1000W" on the box is its maximum potential output, not its constant draw. Honestly, a high-quality 1000W unit running at 50% load is often more energy-efficient than a cheaper, lower-wattage unit that's constantly being pushed to its limit.
How Long Does a 1000W PSU Typically Last?
A PSU's lifespan really comes down to its build quality, how much heat it deals with, and how hard it's being worked. With that said, a top-tier 1000W power supply from a trusted brand almost always comes with a warranty of 10 to 12 years. That long warranty is a pretty clear signal of the manufacturer's confidence in its longevity.
Since a 1000W unit rarely runs at full tilt in most builds, it endures far less stress and heat. This relaxed operating state is the key to a longer, more reliable service life. Of course, keeping your case clean and ensuring good airflow goes a long way, too.
If you're in the Hamilton area and would rather have an expert handle your PSU upgrade, or if you just have more questions about your specific build, Klimka Computer Solutions is here to help. We make sure your powerful components get the clean, stable power they need to perform their best. Visit us online at https://klimkacomputersolutions.com to book a service.
