Your Guide to DVI to DisplayPort Adapters and Cables

Trying to connect a computer with a DVI port to a newer monitor that only has DisplayPort inputs? It's a common situation, but it's not as simple as just grabbing any old cable. This particular connection has a specific technical hurdle you need to overcome.

The short answer is you absolutely need an active DVI to DisplayPort adapter. A simple, passive cable won't cut it for this direction, and you'll just end up staring at a "no signal" message on your shiny new screen.

Bridging the Gap: DVI to DisplayPort Explained

So, you've got a trusty older computer with a DVI output, and you want to hook it up to a modern, high-resolution DisplayPort monitor. It’s a setup we see all the time in home offices and small businesses across Hamilton and the surrounding areas like Stoney Creek and Burlington. You'd think a simple cable would bridge the gap, but this connection is a one-way street with a specific toll.

The heart of the problem lies in how these two technologies communicate. DVI and DisplayPort come from different generations and speak completely different digital "languages." This guide will walk you through exactly what you need to know to get this connection working perfectly, saving you the headache and expense of buying the wrong gear.

Why This Connection Is So Tricky

Think of it this way: DVI sends video information like a continuous, live TV broadcast. It’s a constant stream of data. DisplayPort, on the other hand, is much more like the internet—it breaks the information down into small, neat packets and sends them over.

Because of this fundamental difference, you can't just rewire the pins from one connector to the other. The entire signal has to be actively translated from the DVI "broadcast" format into the DisplayPort "packet" format.

The single most common mistake people make is buying a passive adapter. Those only work when going from a DisplayPort source to a DVI monitor. For DVI-to-DisplayPort, an active converter with its own little processing chip inside is the only thing that will work.

Here's a quick look at why these connections are not interchangeable.

DVI vs DisplayPort Quick Connection Facts

Connection Detail	DVI Source to DP Monitor	DP Source to DVI Monitor
Signal Type	Different (TMDS vs Packet-based)	Different (Packet-based vs TMDS)
Adapter Needed	Active Adapter is required	Passive Adapter usually works
Directional?	Yes, one-way only	Yes, one-way only
Common Mistake	Using a passive cable or adapter	N/A (usually works)

This table shows why you can't just use any adapter. The conversion from DVI to DisplayPort is an uphill battle that requires a powered, active device to do the heavy lifting.

What You Will Learn

This guide breaks down everything you need for a successful DVI to DisplayPort setup. We'll cover:

• The key differences in how DVI and DisplayPort signals work.
• Why an active adapter is your only option for this specific connection.
• How to pick the right adapter for your resolution and refresh rate needs.
• A step-by-step guide to get it all connected without a hitch.
• Troubleshooting tips for common problems, like that frustrating blank screen.

By the end, you'll be able to confidently connect your devices and get the most out of your hardware, whether you're setting up a multi-monitor workstation or just giving an older machine a new lease on life.

Why DVI and DisplayPort Speak Different Languages

Ever tried to plug a DVI cable from your computer into a newer DisplayPort monitor, only to get a blank screen? It’s a frustratingly common problem, and it's not because of a faulty cable. The real issue is that these two standards are speaking completely different languages.

Think of it like trying to play a Blu-ray disc in a VCR. The physical shapes are different, sure, but more importantly, the way the information is stored and read is fundamentally incompatible. This is the core of the DVI vs. DisplayPort dilemma we often see in setups around Hamilton, especially when blending older, trusted hardware with modern displays.

The DVI Signal: A Continuous Stream

DVI, which stands for Digital Visual Interface, sends video information as a simple, continuous flow. Picture it like water pouring from a tap—it’s a steady, uninterrupted stream. It uses a technology called TMDS (Transition-Minimized Differential Signaling) to push a raw feed of pixels directly to your screen.

For its time, this was a massive improvement over old analog connections like VGA, giving us our first taste of sharp digital video. But its design is very straightforward: it's a one-way street dedicated entirely to video. A DVI port simply doesn't have the built-in smarts to change how it sends its signal.

The DisplayPort Signal: Intelligent Packets

DisplayPort is a whole different beast. It works more like your internet connection, sending data in tiny, organized data packets. Instead of a constant stream, it breaks down the video and audio into neat little bundles, sends them down the cable at incredible speed, and the monitor reassembles them on the other end.

This packet-based method is incredibly flexible. It's why a single DisplayPort cable can handle video, high-quality audio, and other data all at once. It’s also the secret behind modern features like running multiple monitors from one port (daisy-chaining) and hitting those ultra-high refresh rates—things DVI’s old-school stream was never built for.

The core problem is this: a DVI source is always "broadcasting" a TMDS signal, while a DisplayPort monitor is expecting to receive organized data packets. A simple cable can't translate this broadcast into packets, which is why a direct dvi to displayport connection fails.

This deep-seated difference in how they "talk" is exactly why you can't just use a cheap adapter that just reroutes the pins. To make this connection work, the DVI signal needs to be actively captured, processed, and repackaged into the packet format a DisplayPort monitor can actually understand. This job requires an active converter with a built-in chip, which we’ll get into next.

Why You Absolutely Need an Active Adapter

Here’s where most people go wrong when trying to connect an older computer with DVI to a brand-new DisplayPort monitor. They grab the wrong kind of adapter, and it’s a recipe for a blank screen and a whole lot of frustration. Understanding the difference between passive and active adapters isn’t just technical trivia—it’s the key to making this connection work at all.

Think of a passive adapter as just a simple pin re-arranger. It physically maps the pins from one plug to another but does absolutely nothing to the signal itself. It’s a dumb bridge, not a translator. This works fine when the source is smart enough to do the translation, like a newer DisplayPort++ port, but that's not what we're doing here.

Your DVI port is old-school; it only speaks one language, and it's not DisplayPort. A passive adapter is completely useless in this scenario because it can't bridge that communication gap.

The Magic of Active Conversion

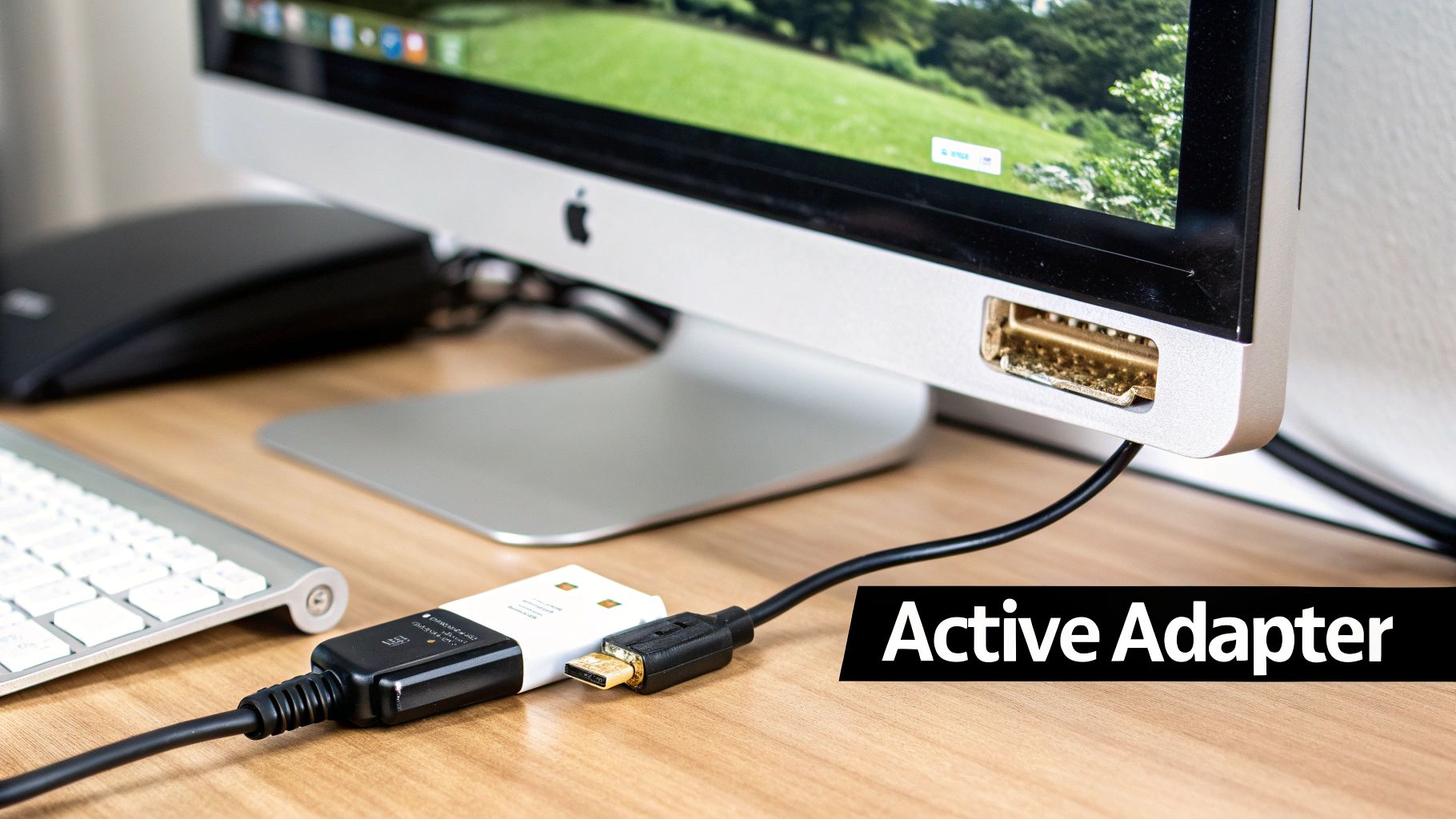

This is where an active adapter comes in. It's not just a cable—it's a little piece of tech with a very specific job: to be a real-time signal translator. It actively takes the video data coming from your DVI port and completely rebuilds it into a signal your DisplayPort monitor can understand. We often recommend this exact solution for clients here in Hamilton who want to get more life out of their trusty older machines.

Inside every DVI to DisplayPort active adapter, there's a small but powerful chip. This tiny piece of circuitry is the secret sauce.

This chip grabs the raw TMDS video stream coming from your DVI port, decodes it on the fly, and then repacks it into the distinct, packet-based data format that DisplayPort monitors need to display an image.

This active translation process is the single most important part of the equation. Without it, you’re guaranteed to see that dreaded 'no signal' message. The adapter is doing the heavy lifting your computer's DVI port can't. You'll find more technical details on this process over at Cablestogo.com.

Don't Forget the Power Cable

To pull off this complex digital translation, that little chip needs power. This is why you'll see a USB cable hanging off the side of any proper DVI to DisplayPort adapter. That cable isn't for show—it’s mandatory. It has to be plugged into a powered USB port on your computer or a separate wall charger to give the adapter the juice it needs to work.

Let’s break it down:

• A passive adapter will 100% fail. It has no electronics inside to convert the DVI signal.
• You must use an active adapter. Its internal chip is the only thing that can perform the signal translation.
• The USB cable is essential. Without power, the adapter is just an expensive plastic block.

Getting your head around the role of a proper video adapter is the most critical step. By making sure you have the right active converter—and plugging it in correctly—you can get your reliable older computer talking to a modern monitor without a hitch.

How to Choose the Right DVI to DisplayPort Adapter

You’ve already cleared the biggest hurdle: knowing you need an active adapter. But the job isn't done yet. Picking the wrong type of active adapter will land you right back where you started—staring at a blank screen.

To make sure you get it right the first time, you just need to confirm three key details about your gear before you click "buy."

First up, what are your resolution and refresh rate goals? If you're just hooking up a standard 1080p monitor that runs at 60Hz, you’re in luck; those adapters are common and quite affordable. But if you're trying to drive a high-performance gaming monitor or a larger display, say at 1440p or even 4K, you'll need to invest in a more capable adapter that is explicitly rated for those higher demands.

Check Your DVI Port Type

Next, you need to play detective with the DVI port on your computer. Look closely at the pins. Does it have a gap in the middle, or is it a solid block of pins?

A DVI-D Single-Link port has a small gap and maxes out at resolutions like 1920×1200 at 60Hz. The DVI-D Dual-Link port, on the other hand, is filled with pins and can push much higher resolutions, like 2560×1600.

Your adapter absolutely must match your computer's port. You can't plug a Dual-Link adapter into a Single-Link port and expect it to magically create a higher-resolution signal. This little detail is a common stumbling block for PC users across the Hamilton area, so it pays to double-check.

Plan for External Power

Finally, remember that little chip inside the active DVI to DisplayPort adapter? It’s doing some heavy lifting to convert the signal, and it needs power to do its job. This power almost always comes from an attached USB cable.

So, when you're looking at adapters, make sure you have a spare powered USB port on your PC or a nearby USB hub. Without that juice, the adapter is nothing more than a fancy paperweight. If you're dealing with other types of connections, our guide on choosing a USB to HDMI cable might come in handy.

This flowchart breaks down the decision-making process, showing why the active route is the only one that works here.

As you can see, a passive adapter just shuffles the pins around, which inevitably leads to a "no signal" error. It's only the active adapter, with its built-in signal converter, that can successfully translate DVI to DisplayPort and light up your monitor.

Your Pre-Purchase Checklist:

1. Resolution Goal: What is my DisplayPort monitor's native resolution and refresh rate?
2. DVI Port Type: Is the DVI port on my computer Single-Link or Dual-Link?
3. Power Source: Do I have a free, powered USB port ready for the adapter?

Answering these three questions beforehand will give you the confidence to buy the right adapter for your setup. A little preparation now saves a lot of headaches (and return shipments) later.

Connecting Your Devices Step by Step

Now that you have the right active adapter, it’s time to get everything hooked up. Following a specific order here isn't just about being tidy—it can actually save you a lot of headaches and help your computer recognize the new display without a fuss.

Let's get your DVI source and DisplayPort monitor talking to each other.

Before you touch a single cable, the most important first step is to completely shut down your computer. Unplug your monitor from the wall, too. It’s a simple safety measure that prevents any electrical mishaps and gives your hardware a clean slate to detect changes when you restart.

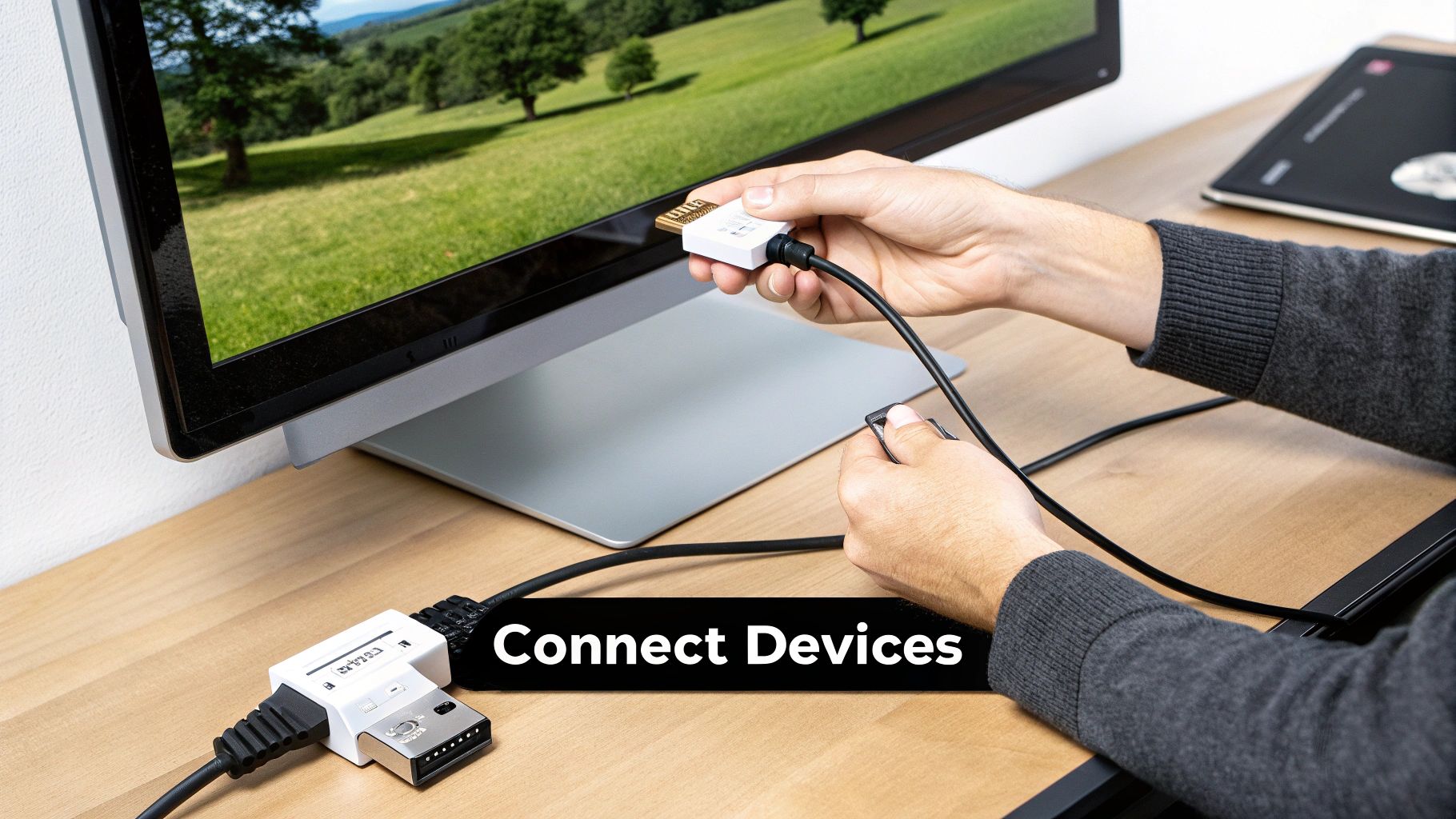

The Physical Connection Sequence

With everything powered off, you can start plugging things in. Sticking to this order helps prevent those frustrating "signal handshake" issues that often result in a black screen. It’s a methodical approach we always recommend to our local clients.

1. Source to Adapter: First, connect your DVI cable from the computer's output and plug it securely into the DVI input on your active adapter. Make sure to tighten the thumbscrews so the connection is solid.
2. Adapter to Display: Now, plug your DisplayPort cable into the DisplayPort output on the adapter. The other end goes into the DisplayPort input on your monitor.
3. Powering the Adapter: This is the step everyone forgets, but it's absolutely crucial. Plug the adapter’s USB cable into a powered USB port on your computer or even a separate USB wall charger. That little chip inside needs power to do its job.

With all the cables firmly seated, you're ready to bring it all to life. I always suggest powering on your monitor first. Give it a few seconds to wake up, and then turn on your computer.

Your operating system should automatically detect the new display. If you don't see a picture right away, don't panic. Sometimes a quick reboot is all it takes for the system to recognize the new setup. If you run into more stubborn problems, you can find some great advice in our articles on monitor troubleshooting.

And that’s it! Your DVI-to-DisplayPort connection should be up and running.

Troubleshooting Common Connection Problems

So, you've plugged everything in, but your screen is stubbornly black or flashing a "no signal" error. Don't panic. This is a pretty common hiccup when using a DVI to DisplayPort adapter, and the solution is usually simpler than you think. Let's run through the usual suspects to get your display up and running.

First things first, check your physical connections. It sounds obvious, but you'd be surprised how often the fix is this simple. Start with the most common culprit: the adapter's USB power cable. Is it plugged in securely at both ends? An active adapter is dead in the water without that power.

Next, give every other cable a gentle push to make sure it's seated firmly. Check that the DVI and DisplayPort connectors are pushed all the way in. If your DVI cable has thumbscrews, take a second to tighten them. A loose connection is the number one cause of signal-related headaches.

Diving Deeper into Settings

If all your cables are snug, the problem might be hiding in your display or computer settings. Many monitors have several inputs and don't always know which one you want to use. You'll need to use the physical buttons on the monitor itself to pull up its menu and manually select the correct DisplayPort input.

Sometimes, the issue is software-related. Your computer’s graphics drivers are the software that tells your video card how to talk to your monitor. If they're out of date, they can throw a wrench in the works, especially with adapters. Head over to your graphics card manufacturer's website—like NVIDIA, AMD, or Intel—and grab the latest drivers for your model. A quick restart after the update is often all it takes.

A common point of confusion is that display adapters are bidirectional. They aren't. Converting a DisplayPort signal to DVI is a different, and frankly simpler, technological process. Those adapters bridge the gap from a modern source to an older screen, often with no fuss. But going the other way, from DVI to DisplayPort, requires the active conversion we've been discussing.

When the Problem Persists

Still staring at a black screen or dealing with a flickering image? Let's try one more thing. Go into your computer's display settings and lower the screen resolution. It’s possible the adapter just can't handle the monitor's maximum native resolution. If a lower resolution brings the picture to life, you've found your bottleneck—you'll need a more capable adapter.

If you've tried all of this and you're still stuck, you might be dealing with a more complex hardware conflict or a faulty part. At this point, calling in a professional is your best bet. Local experts who specialize in computer monitor repair can quickly diagnose the root cause, whether it's a damaged port on your computer, a bad adapter, or a deeper issue with your hardware.

Knowing When to Upgrade Instead of Adapt

A DVI to DisplayPort adapter can be a real lifesaver, but it's best to think of it as a temporary bridge rather than a permanent highway. While these converters work perfectly well for many people, they can quickly become a frustrating bottleneck if you're pushing your hardware to its limits.

The biggest issue is the performance cap. Most active adapters you'll find can only handle resolutions up to 1080p or 1440p at a 60Hz refresh rate. For everyday office work, browsing the web, or watching videos, that’s perfectly fine. But for more demanding tasks, it just won’t cut it.

The Performance Ceiling

If you're a gamer or a creative professional here in Hamilton, you’ll feel those limitations almost immediately. All the advanced features that make modern monitors so impressive simply get lost in translation when you're using an adapter.

Here's what you'll be missing out on:

• High Refresh Rates: You can forget about that silky-smooth 120Hz or 144Hz experience that gives you a competitive edge in gaming.
• Adaptive Sync: Technologies like G-Sync and FreeSync, which are crucial for eliminating that ugly screen tearing, won't work through an adapter.
• High Dynamic Range (HDR): The stunningly rich colours and deep contrast that HDR offers will be completely off the table.

In these situations, the adapter stops being a helpful tool and starts holding back your expensive monitor from performing at its peak. The only real long-term solution is to upgrade to a graphics card with a native DisplayPort output. If you need a hand picking the right parts, getting professional advice on custom PC builds in Hamilton can point you in the right direction.

When it’s time to upgrade instead of adapt, it’s also important to think about what to do with your old gear. Learning what IT Asset Disposition (ITAD) truly means can help you handle your replaced equipment responsibly. An upgrade is the perfect chance to recycle old hardware the right way.

At the end of the day, if you need more than just a basic picture on your screen, an adapter is just a stopgap. An upgrade is the only way you're going to unlock all the features you paid for in your modern DisplayPort monitor.

---
