Mastering the USB to SATA Connection for Data Recovery

Got an old hard drive sitting around from a computer that died years ago? Chances are it's full of precious memories, like family photos and important documents. Or maybe you're itching to upgrade to a lightning-fast SSD but the thought of cracking open your computer case gives you pause.

This is where a USB to SATA connection becomes your best friend. It’s a simple, incredibly useful tool that acts as a bridge, letting you access any internal computer drive through a standard USB port.

Why You Need a USB to SATA Connection

Think of a USB to SATA adapter as a universal translator. It takes the language of an internal drive (SATA) and converts it into the language your computer's USB port understands. This handy trick is the secret behind a ton of common tech tasks, from data recovery to system upgrades, all without needing a screwdriver.

Here in our Hamilton shop, we see these adapters save the day constantly. We've helped people from Ancaster to Stoney Creek rescue a decade's worth of photos from a laptop that wouldn't boot and guided others through cloning their entire system to a new SSD for a massive performance boost. It’s a must-have gadget for any home tech kit.

Common Real-World Uses

So, what can you actually do with one of these? Here are a few everyday scenarios where a USB to SATA connection is a lifesaver:

• Emergency Data Recovery: Your computer is dead, but the hard drive inside is probably fine. Just pull the drive out, connect it with the adapter to another computer, and you can browse your files like it's just another external drive.
• Effortless System Upgrades: The single best way to make an old computer feel new is to switch from a hard drive to an SSD. An adapter lets you clone your entire system—Windows, programs, files, and all—to the new SSD before you install it. It's a game-changer.
• Secure Data Wiping: Getting rid of an old computer? You can’t just delete the files. Connecting the drive externally lets you run proper wiping software to make sure your private information is permanently erased and unrecoverable.
• Convenient Backups: If you're a bit more hands-on, you can use a spare internal drive as a backup target. It’s a straightforward way to keep your most important files safe. For a more structured approach, you might want to check out our guide on how to back up your computer files properly.

A lot of people think this is a job for a tech wizard, but that's just not true. With the right adapter, accessing an internal drive is as easy as plugging in a USB stick. Anyone can do it safely.

The technology itself builds on the well-established principles of serial communication. Modern USB 3.0 to SATA adapters are essential for our data recovery and storage expansion services right here in Canada.

These newer adapters support transfer speeds up to 5Gbps, which blows the old 480 Mbps of USB 2.0 out of the water. Look for one with UASP support, and you could see transfers up to 70% faster still. It’s a versatile solution we rely on for clients all over Hamilton and the Greater Toronto Area. You can find more great info on this from the experts at StarTech.com.

Choosing the Right Adapter for the Job

Picking the right USB to SATA connection adapter really comes down to one simple question: are you connecting a 2.5-inch drive from a laptop or a 3.5-inch drive from a desktop? That’s it. Your answer changes everything.

For the smaller 2.5-inch drives, which includes pretty much all modern SSDs, a basic USB-powered cable is all you’ll ever need. These get all the power they need straight from your computer’s USB port, making them super portable and dead simple to use.

But those bigger 3.5-inch desktop drives are a different story. They're power-hungry and absolutely require an adapter that comes with its own AC power brick. If you try to use a simple cable meant for a laptop drive, it's just not going to work—the drive won't even spin up.

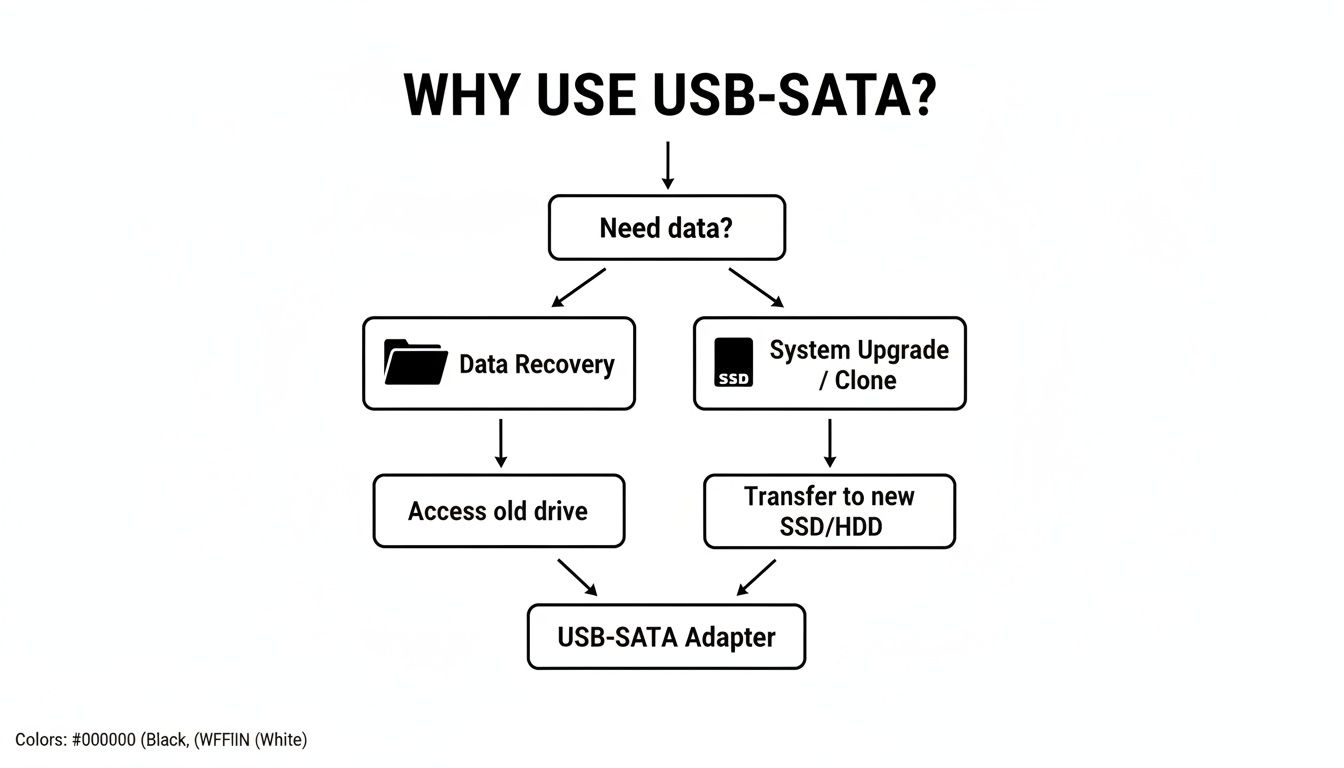

This flowchart breaks down that exact decision-making process, whether you're trying to recover data or upgrade your system.

As you can see, figuring out the drive type is the first and most critical step. Get that right, and you're already halfway there.

USB to SATA Adapter Feature Comparison

To help you visualize the differences, here’s a quick rundown of what to expect from each type of adapter. This should make it easy to match the right tool to your specific task.

Feature	Simple 2.5" Cable	Powered 3.5" Adapter	Docking Station
Best For	Laptop HDDs, 2.5" SSDs	Desktop HDDs, 2.5" SSDs	Multiple drives of both sizes, frequent swapping
Power Source	USB Port (Bus-Powered)	External AC Adapter	External AC Adapter
Portability	Excellent – very small	Good – cable + power brick	Fair – designed for a desk
Typical Use Case	Quick data access, one-off laptop drive clone	Recovering data from a desktop drive	IT pros, tech enthusiasts, data cloning
UASP Support	Common on modern versions	Common on modern versions	Standard on most models

Ultimately, a simple cable works for occasional laptop drive access, but for anything involving a desktop drive or frequent use, a powered adapter or a full-blown dock is the way to go.

Key Features to Look For

Beyond the power situation, there are a couple of other things I always look for. First, make sure you get an adapter that supports USB 3.0 at a minimum. The speed jump from the old USB 2.0 standard is massive, and you’ll really feel it when you’re moving gigabytes of data.

Also, keep an eye out for UASP (USB Attached SCSI Protocol) support. This is a more efficient transfer protocol that can give you a noticeable speed boost over standard USB 3.0, especially with SSDs. It means less time staring at a progress bar.

Adapters vs Docking Stations

So, when does it make sense to go beyond a simple cable? If you're someone who is constantly working with bare drives, a docking station is a fantastic investment.

• Cables and Adapters: These are your go-to for one-off jobs. Think pulling files from a single old laptop drive or cloning your system to a new SSD. They’re small, cheap, and get the job done.
• Docking Stations: Perfect for technicians or anyone who needs to quickly swap between multiple drives. They usually have slots for both 2.5" and 3.5" drives, and many even offer offline cloning—a feature that lets you duplicate a drive without even connecting to a PC.

If you want to dig deeper into the more advanced options, you can check out our detailed guide on hard drive docking stations.

The good news is that these tools are easy to find here in Canada. Local Southern Ontario retailers like Best Buy and Canada Computers always have reliable brands in stock, so you can usually pick one up the same day you need it.

Making a Successful Drive Connection

Alright, you've got the right adapter in hand. Now it's time to put it to work. Getting your drive connected is usually a breeze, but a few small details can be the difference between a smooth process and a headache. Let's walk through establishing a solid usb to sata connection.

First thing's first: static electricity. Your drive’s internal components are extremely sensitive to static discharge. To be safe, just touch a large, unpainted metal surface—like the side of your computer tower—to ground yourself before you even pick up the drive.

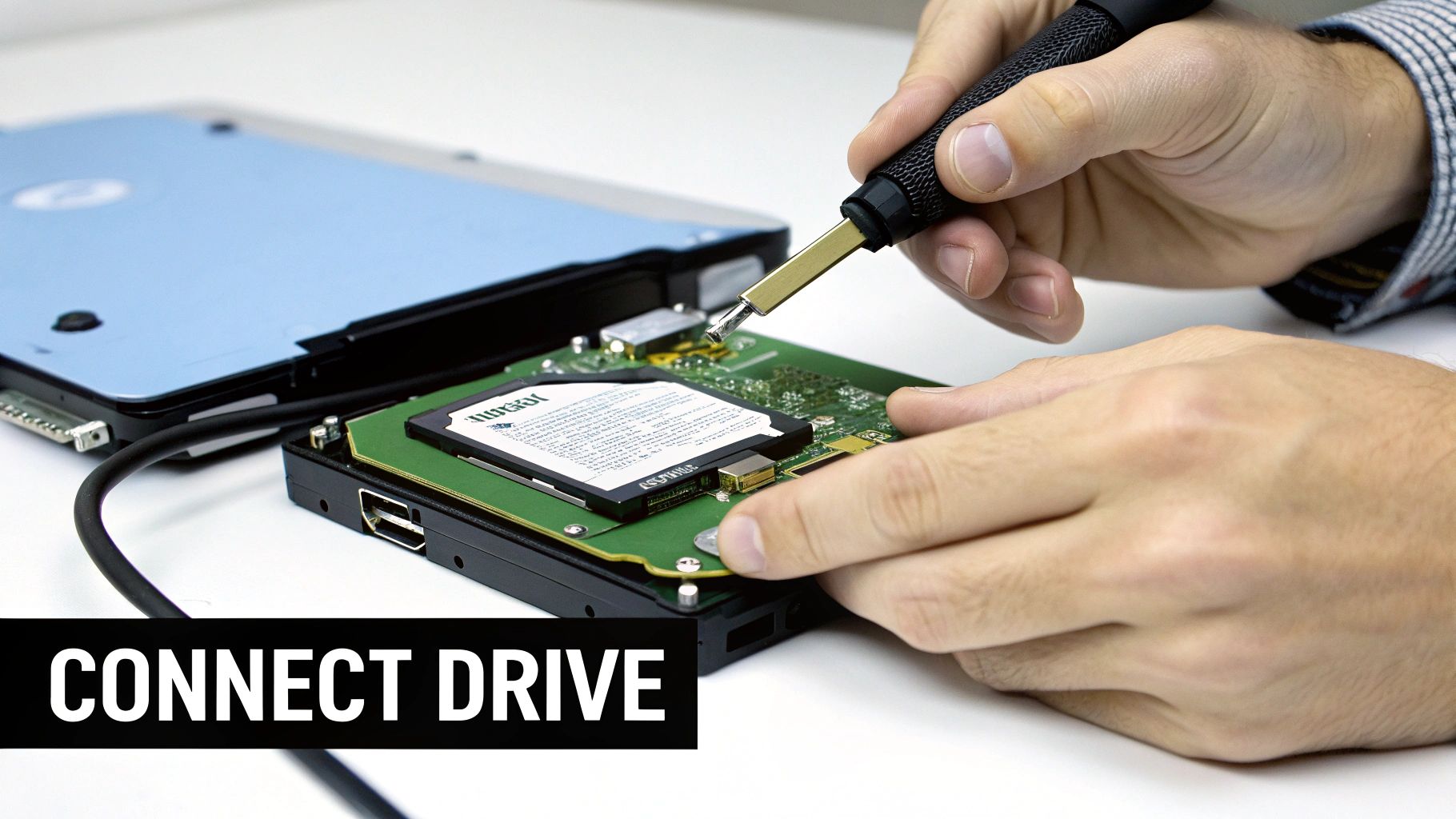

The Physical Connection Process

With safety sorted, the actual hookup is pretty intuitive. Look at the SATA connector on your drive. You'll see two L-shaped slots: a short one for data and a longer one for power. Your adapter is designed to match this perfectly, so it can only plug in one way.

Carefully line up the adapter's connector with the port on the drive and press them together. You should feel a satisfying, secure click. Don't force it! If there's resistance, you've probably got it misaligned.

The most common mistake we see from clients in Hamilton is forgetting the external power for 3.5-inch desktop drives. A simple USB connection doesn't provide enough juice for these larger drives to spin up, making this step absolutely critical.

If you're working with a big 3.5-inch drive, this is when you plug its AC power adapter into the wall and then into the adapter itself. For smaller 2.5-inch laptop drives, the USB port alone supplies all the power you need.

The last step is to plug the adapter's USB cable into an available port on your computer. That's it for the hardware part—you're done.

Initializing the Drive in Your Operating System

Once everything's physically connected, your computer has to acknowledge the drive. If the drive already has data on it, this part is often automatic. In a few moments, you should see a new drive letter pop up in File Explorer (on Windows) or a new drive icon appear on your Desktop (on a Mac).

However, if you're connecting a brand-new drive right out of the box, you'll need to give your computer a little nudge to get it ready.

• For Windows Users: Right-click the Start button and open "Disk Management." A window should pop up asking you to initialize the disk. Choose GPT (especially for drives over 2TB) and click OK. Afterwards, right-click the "Unallocated" space for the drive and select "New Simple Volume" to format it.
• For macOS Users: Fire up Disk Utility. Find the new external drive in the list on the left and click "Erase." Give it a name, pick a format (APFS is standard for modern Macs), and click "Erase" one more time.

Today's adapters are built to handle the large drives most of us use for home and small business storage here in Ontario. Many easily support drives up to 4 TB and beyond, which is fantastic for backups or expanding your storage. You can check out the specs for these types of adapters from suppliers like CDW.

And if you're dealing with a more complicated situation or moving huge amounts of critical data, our professional data transfer services are always here to make sure it's done right.

Making the Most of Your Connected Drive

Alright, your computer sees the drive. Now the real work begins. The magic of a usb to sata connection isn't just about plugging things in; it's about what you can do once that connection is live. This is your gateway to recovering lost photos, upgrading your system, or just getting a handle on your data.

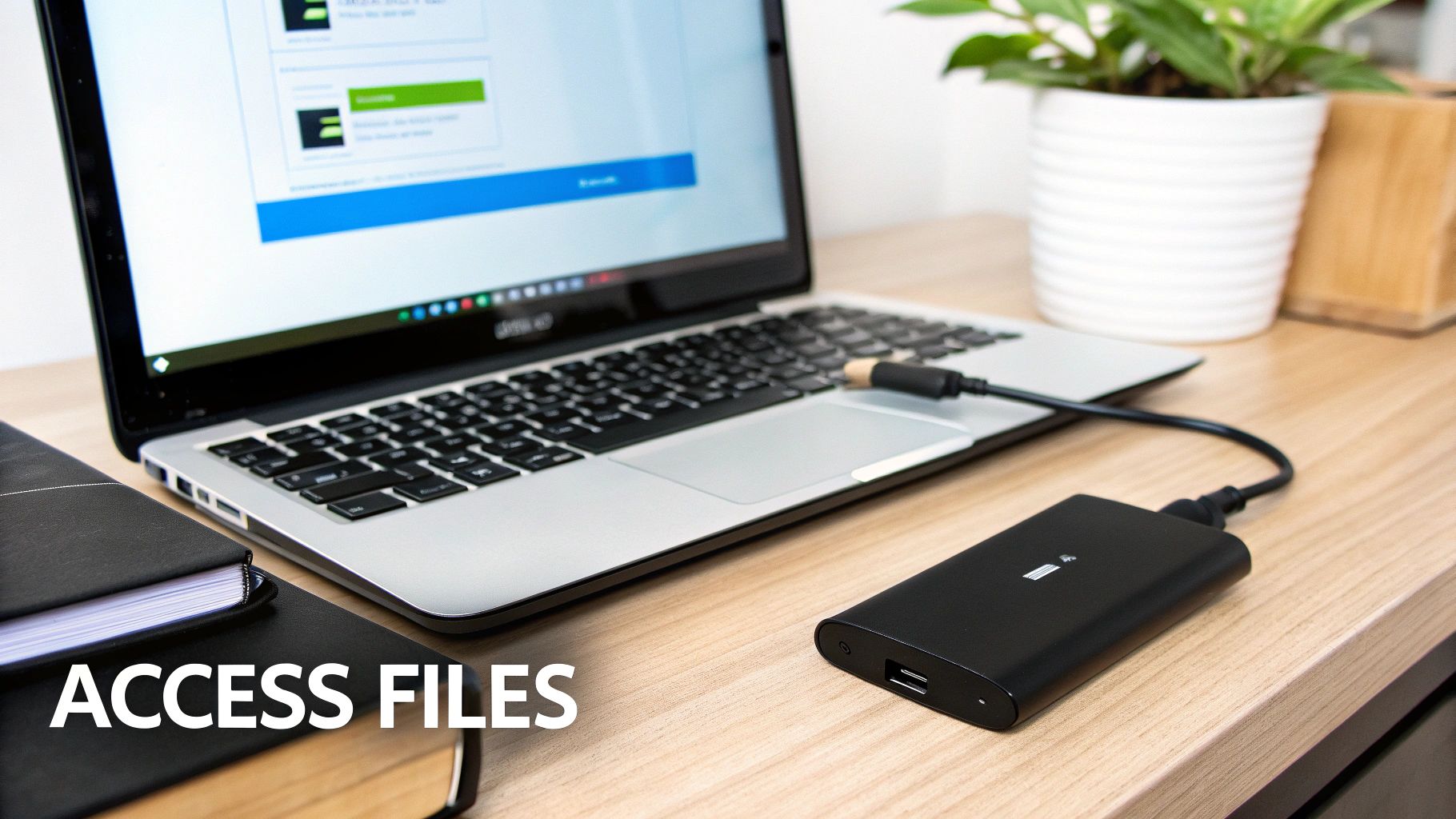

For many, the most straightforward use is turning that internal drive into a temporary external one. Think of it as a giant USB stick. You can drag and drop files back and forth, which is often the quickest way to pull important documents off a computer that won't boot up.

This direct access is also a cornerstone of many effective backup strategies. It allows you to pull data from old drives and consolidate it as part of a larger data protection plan.

From Simple File Copies to Full System Cloning

Copying a few folders is easy, but what about moving your entire operating system? That's where drive cloning comes in, and it's a lifesaver when you're upgrading from an old, slow hard disk drive (HDD) to a zippy new solid-state drive (SSD).

With free software like Macrium Reflect or Clonezilla, you can create a perfect, bootable replica of your old drive. We're talking everything: your operating system (Windows or macOS), all your installed programs, your settings, and every last file.

Here’s the basic process we follow for our clients here in Hamilton:

• First, connect the new SSD to your computer with the USB to SATA adapter.
• Next, install and launch your cloning software of choice.
• Inside the software, you'll pick your current internal drive as the "source" and the new SSD as the "destination."
• Finally, start the cloning process. How long it takes depends on how much data you have, but a USB 3.0 connection keeps things moving along nicely.

Once it's done, you can physically swap the old drive out for the new SSD. Your computer will boot up just like it did before, but you'll notice it's a whole lot faster. It’s one of the most impactful upgrades you can make to an aging machine.

The First Line of Defence in Data Recovery

But what if you're not upgrading—what if you're in rescue mode? When a computer refuses to turn on, the hard drive inside is often perfectly fine. A USB to SATA connection is your most important tool for finding out.

By connecting the drive to a healthy computer, you completely sidestep the original problem, whether it was a dead power supply, a fried motherboard, or a corrupted OS. This direct access gives you the best shot at saving your irreplaceable files.

A quick word of caution, though. This DIY method is great for software-related issues (a "logically failing" drive). If you hear any clicking, grinding, or other strange noises, that's a sign of physical failure. Powering it on could make things worse.

For those more serious cases, it’s best to stop and get professional help. If you're unsure whether your situation is safe for a DIY approach, reading up on external hard drive data recovery can help you make an informed decision.

Solving Common Connection Issues

So you've plugged everything in, you hear a faint whir… and nothing. The drive is nowhere to be found in File Explorer. Don't panic! This is easily the most common snag people hit with a usb to sata connection, and thankfully, it's usually simple to fix. Here in our Hamilton shop, we've walked customers through this countless times.

Before you start digging into software settings, let's cover the basics. Go back and check the physical connections. If you're working with a larger 3.5-inch desktop drive, is its AC power adapter plugged in securely at both the wall and the adapter? It’s an easy thing to miss, but those bigger drives are power-hungry and won't spin up without it.

Next, just try a different USB port. It sounds too simple, but some ports, especially those on the front of a desktop case or on an unpowered USB hub, might not supply enough juice or have a reliable data connection.

When the Drive is Silent or Slow

Okay, so the physical connections are solid. Now it’s time to see what your computer thinks is going on. The issue usually boils down to either the drive not being recognized properly or a performance problem slowing things to a crawl.

A very frequent scenario is when Windows sees the drive at a hardware level but hasn't assigned it a drive letter or prepared it for use. This is where a tool called Disk Management comes in handy (on a Mac, it's called Disk Utility). Open it up and look for a disk that matches the size of the one you just connected. Often, you'll see it there, unallocated or offline. A few clicks to initialize it and assign a letter is all it takes.

If your files are transferring at a mind-numbingly slow pace, take a look at the USB port you're using. If it's black, it's probably an old USB 2.0 port. Find a blue-coloured port on your computer—that's the mark of the much faster USB 3.0 standard. Switching to that port can dramatically boost your speeds.

We see the same few issues pop up over and over again. This quick-reference table covers the most common symptoms and what you should try first.

Common USB to SATA Problems and Fixes

Symptom	Possible Cause	Solution to Try
Drive not showing up at all	Power issue (3.5" drive)	Double-check that the external AC power adapter is plugged in and the wall outlet is live.
Drive is silent but not in Explorer	Needs initialization or a drive letter	Open Disk Management (Windows) or Disk Utility (macOS) to see if the drive appears there. If so, initialize it or assign it a letter.
Very slow transfer speeds	Connected to USB 2.0 port	Move the adapter's cable to a blue USB 3.0 (or newer) port on your computer for a significant speed increase.
Drive disconnects randomly	Faulty adapter or cable	If you have another one, try a different adapter or USB cable. This helps isolate whether the drive or the adapter is the problem.

Hopefully, that table gets you sorted. These four scenarios cover the vast majority of connection headaches.

Digging Deeper into Connection Problems

Sometimes, the problem isn't your drive or the computer, but the adapter in the middle. While most are pretty reliable these days, a cheap or faulty unit can cause all sorts of grief, from random disconnections to preventing the drive from showing up entirely.

This is particularly true for older, unbranded adapters that have been knocking around in a drawer for years. If you've run through all the steps above and are still stuck, the final troubleshooting step is to borrow or buy a different, known-good adapter. It's the quickest way to find out for sure where the fault lies.

Knowing When to Throw in the Towel and Ask for Help

A USB to SATA adapter is an incredibly handy tool, but it's not a silver bullet for every hard drive issue. There are moments when pressing on with a do-it-yourself recovery can turn a bad situation into a catastrophic one. Knowing when to stop is just as important as knowing how to start.

The Sounds of Data Destruction

The most urgent warning signs are the ones you can hear. If you plug in a drive and it starts making any kind of rhythmic clicking, grinding, or buzzing noises, unplug it right away. Seriously, don't even think about it—just pull the plug.

These noises are the classic symptoms of a mechanical failure. The delicate read/write heads are likely damaged and scraping across the platters where your data lives. Every second it stays powered on, you risk turning a recoverable drive into a tiny, expensive coaster.

When Software Problems Aren't So Simple

Sometimes the drive is silent, but the problem is just as severe. A common scenario we see from folks around Hamilton is a drive that shows up in Disk Management, but its partition is listed as "RAW" or is just completely inaccessible. This is a tell-tale sign of deep-level file system corruption.

Sure, there are recovery tools out there you can download, but they can be a minefield if you don't know exactly what you're doing. One wrong move or a failed scan can actually write over the very files you’re desperately trying to get back.

It's a tough pill to swallow, but if the data is mission-critical—family photos, crucial business documents, or your life's work—it’s time to call it. The risk of accidentally wiping everything forever is just too high when a professional has the right tools to do it safely.

For these kinds of complex mechanical and logical failures, your next best step is to get an expert involved. If you're in the area, our team offers specialized data recovery services near me and can give you the best shot at getting your files back safely.

Your Questions, Answered

Over the years here in Hamilton, we've heard just about every question you can imagine when it comes to using these handy adapters. Here are a few of the most common ones we get, with some straightforward answers.

Can I Actually Boot My Computer From a Drive Connected This Way?

The short answer? You can, but you probably shouldn't.

While some motherboards will let you boot from a USB-connected drive, it's really not practical for daily use. Your operating system will feel incredibly slow and might even become unstable because a USB to SATA connection just can't keep up with an internal one.

Think of it as a fantastic tool for emergencies—like running diagnostics or pulling files off a drive from a dead computer—but not as a permanent boot solution.

Does the Adapter Care if it's an Old Hard Drive or a New SSD?

Nope, not at all. And that’s what makes these adapters so useful.

The SATA interface is the same whether you're dealing with a chunky 3.5-inch hard disk drive (HDD) or a zippy 2.5-inch solid-state drive (SSD). This means your adapter will work with pretty much any standard drive you have lying around.

As long as the drive has that familiar L-shaped SATA power and data connector, you're set. The adapter doesn't distinguish between drive types.

Do I Need to Install Special Drivers or Software?

For just grabbing files, you don't need to install a single thing.

Modern operating systems like Windows and macOS are smart enough to have the drivers built right in. The whole process is plug-and-play. Your computer will simply see the connected drive as another external USB device.

The only time you’d need special software is for more advanced jobs, like cloning an entire operating system to a new drive or attempting a deep-level data recovery.

---

When you've tried everything and the data still seems out of reach, it's time to call in a professional. Klimka Computer Solutions offers fast, honest, and affordable data recovery and computer repair services for our neighbours all over Hamilton. Contact us today for professional support.
